A Comprehensive Guide to Groove Welding

When you train to be a welder, you learn that there are many types of welds you can perform with different purposes and functionality. Groove welding is a technique where you create a groove-shaped opening between two metal surfaces to produce a strong, durable joint. The groove allows for a deeper weld penetration—when the weld metal completely fills the joint—making it a good choice for thicker metals and structural applications where strength is critical. Considered among the strongest types of welding techniques, groove welds are created when the weld root is fully fused with the base materials to create solid and continuous bonds from one side of the joint to the other.

Within groove welding, there are specific welds used for various projects. This guide will outline the different types of groove welds and how they are used.

Understanding Groove Welding

There are many advantages to groove welding, particularly for projects that require strong welds. If you’re working on a project where you need to minimize the deformation of the base material, but still need a high-strength weld, groove welding is the answer.

Among the advantages of groove welding are:

1. Deep Penetration: The groove shape allows for deep weld penetration and ensures a solid bond between thick metal sections, which is crucial for structural, heavy-duty applications.
2. High Load Capacity: Groove welds distribute weight and stress, making them ideal for parts that will bear heavy loads, such as steel beams, bridge supports, and heavy-duty equipment components.
3. Versatility: Groove welding can be used across a range of industrial applications, including construction, automotive, and pipeline work.
4. Increased Safety: The strong welds produced by groove welding help ensure the overall safety of structures, especially when applied to critical infrastructures.

Groove welding is commonly used in larger construction projects for buildings, bridges, and other structures that need to handle high amounts of stress. Additionally, groove welding is useful in the design of vehicles, pipeline welding, and heavy equipment.

5 Types of Groove Welds

There are five basic types of groove welds, each suited to specific materials and applications. The type of groove weld you choose depends on the thickness of the materials, the required strength of the joint, penetration needed, and the overall purpose of the project.

Note: The reference value of the angle and groove type is dependent on the welding process used and structural design specifications.

Square Groove Weld

Square groove welds are the simplest type of groove weld, where the edges of the materials are squared off without any bevel or shape. This type of weld is typically used for thinner materials when full penetration is not needed. Square groove welds don’t require any specialized equipment and are among the first you learn in a welding program.

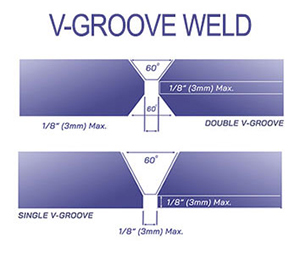

V-Groove Weld

V-groove welds are one of the most common types of groove welds. To perform this weld, you bevel the edges of the metal to form a V-shape, which becomes your groove. V-groove welds can be made from one side or both sides, known as a double V-groove, depending on the thickness of the material. Double V-groove welds are often used for thicker materials.

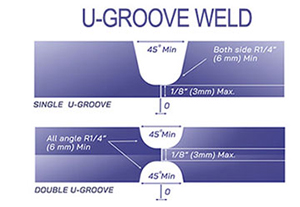

U-Groove Weld

U-groove welds involve a curved bevel that forms a concave, rounded shape between the two metal pieces you’re working with. The rounded shape of the U-groove allows for deep penetration and a stronger joint, while reducing the amount of material that needs to be filled. It may be used in pipe welding, boilers, pressure tanks, and structural components.

J-Groove Weld

J-groove welds have a J-shaped bevel on one workpiece, with the other workpiece left flat to create the joint. This type of groove cuts into less of your material, and you don’t need as much filler metal.

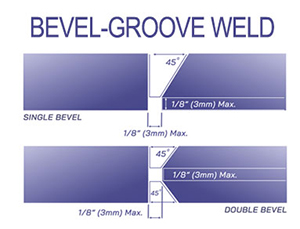

Bevel-Groove Weld

Bevel welds are created by beveling one or both pieces of metal. The angled edge creates a V or U-shaped groove between the pieces. This type of weld is often used when the backside of the welded material isn’t available, and you need to create full penetration.

Preparation for Groove Welding

Proper preparation is necessary if you want a high-quality groove weld. Each type of groove weld has its own procedure, but they start with the same steps. First, it’s always important to be aware of the hazards in your shop to minimize the dangers to yourself and others. Welding safety and best practices should always be top of mind. Next, the surfaces you weld must be cleaned to remove any oil, grease, rust, paint, or other contaminants. Depending on the thickness of the materials you use, you will choose the proper groove for your project. Among the tools you need to get started are your welding machine, torch, angle grinder, clamps, and proper safety gear. Since most weld grooves require precise shaping, they can take more time to prepare, so you need to consider this when mapping out deadlines for projects.
